The core concept of Spring isthe IoC (Inversion of Control) container, which is responsible for managing beans. The IoC container is an object that is engaged in creating other objects (beans) and injecting dependencies in them. There are two primary interfaces that represent the IoC container: BeanFactory and ApplicationContext. These interfaces have many implementations for different purposes. In this topic, we will take a closer look at ApplicationContext, and consider some examples.

BeanFactory & ApplicationContext

BeanFactory is a root interface for accessing the Spring IoC container. As for ApplicationContext, it extends it. That is, ApplicationContext gets its basic functionality from BeanFactory and extends it with additional features. For example, ApplicationContext supports AOP integration, event publication, all types of bean scopes, and more. Since ApplicationContext provides more opportunities, it is advisable to use it instead of BeanFactory.

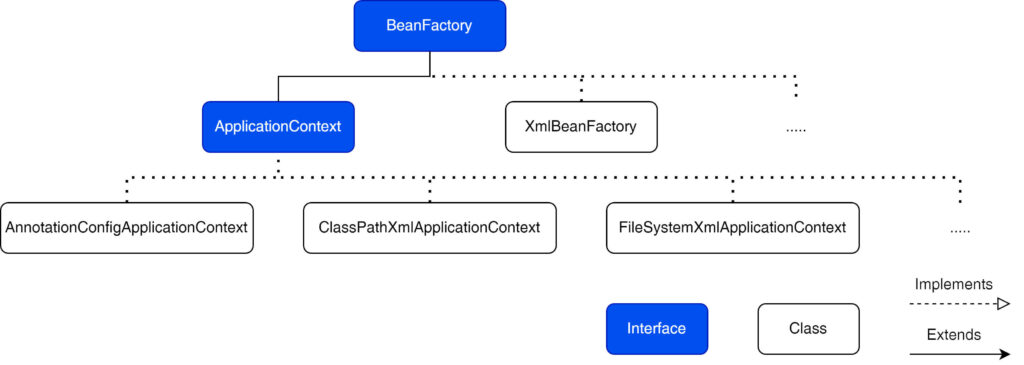

In this diagram, you can see some of the implementations of BeanFactory and ApplicationContext:

As you know, there are two ways to create metadata (bean definitions): by using an XML configuration file or using Java annotations. ApplicationContext and BeanFactory are created based on metadata. That’s why their implementations contain such words as “Xml” or “Annotation”, indicating the type of metadata.

The main difference between these interfaces is that BeanFactory doesn’t support annotation-based configuration, while ApplicationContext does. This fact gives a significant advantage to ApplicationContext over BeanFactory, because it’s recommended to use annotation-based configuration for all new Spring applications.

Creating an application context

Now let’s create our own ApplicationContext based on Java-annotation configuration.

Let’s say we want to store objects of the Person type in our container. So, first of all, let’s create a Person class:

public class Person {

   private String name;

   public Person(String name) {
       this.name = name;
   }
}

An application context is created based on a configuration class, which means we need a configuration class that describes what objects (beans) will be created inside the IoC container:

@Configuration
public class Config {

    @Bean
    public Person personMary() {
        return new Person("Mary");
    }
}

We filled this configuration class with one bean definition (metadata), based on which a future bean will be created inside the container.

Here is what we “say” to our ApplicationContext:

  1. “Create a Person object with the property name = Mary“;
  2. “Call the created bean personMary“;
  3. “Place the bean into the IoC container”.

@Configuration contains the @Component annotation inside, which also tells ApplicationContext to create a bean based on the Config class. So, before creating the personMary bean, ApplicationContext also needs to create a config bean and place it in the IoC container.

Now it’s time to create an application context based on that Config class and get all the bean names (just String names, not objects) from it.

public class Application {

    public static void main(String[] args) {
        var context = new AnnotationConfigApplicationContext(Config.class);
        System.out.println(Arrays.toString(context.getBeanDefinitionNames()));
    }
}

If we were using XML configuration, we would create, for example, ClassPathXmlApplicationContext.

In the output, among a number of internal beans (necessary for the work of a Spring application), you can see the names of our created beans: config and personMary.

[..., ..., config, personMary]

Also, ApplicationContext has overloaded the getBean() methods inherited from the BeanFactory:

  • T getBean(Class<T> requiredType)
  • Object getBean(String name)
  • T getBean(String name, Class<T> requiredType)

Let’s get our bean (whole object) from the container by the Person class:

context.getBean(Person.class); // returns a Person object

If there are several beans of the same class in the container, you need to specify a unique bean name in the getBean() method. Otherwise, an exception will be thrown.

context.getBean("personMary"); // returns an Object object
context.getBean("personMary", Person.class) // returns a Person object

@ComponentScan

Another way to create a bean is by using the @Component annotation placed above a class.

Let’s create two @Component classes: Book and Movie:

@Component
public class Book {

}

@Component
public class Movie {

}

We aim to put these components into the same application context that is based on the Config class. In order for the configuration class to know about the existence of the @Component classes, the @ComponentScan annotation is used. We put this annotation above the configuration class name:

@ComponentScan
@Configuration
public class Config {
    // bean definitions
}

By default, @ComponentScan scans all the classes in the current package and all of its subpackages, looking for @Component classes (and all the other annotations containing @Component: @Service, @Configuration, and so on).

Now our context knows about the new beans: book and movie.

public class Application {

    public static void main(String[] args) {
        var context = new AnnotationConfigApplicationContext(Config.class);

        // [..., ..., book, config, movie, personMary, ..., ...]
        System.out.println(Arrays.toString(context.getBeanDefinitionNames()));
    }
}

You can change the default behavior of @ComponentScan and explicitly specify one or more base packages for scanning:

@ComponentScan(basePackages = "packageName")

Since in @ComponentScan the value attribute is defined as an equivalent of basePackages, and vice versa, you can use them interchangeably. All these variants work in the same way:

@ComponentScan(basePackages = "packageName")

@ComponentScan(value = "packageName")

@ComponentScan("packageName")
ApplicationContext in Spring Boot

Usually, in a Spring Boot application, our class is the entry point of the app, so we annotate it with the @SpringBootApplication annotation, and in the main method, we run our application.

@SpringBootApplication
public class Application {

  public static void main(String[] args) {
     SpringApplication.run(Application.class, args);
  }
}

During the execution of the run method, an application context is created. We can get the context and see what bean definitions it contains:

@SpringBootApplication
public class Application {

  public static void main(String[] args) {
     ConfigurableApplicationContext context = SpringApplication.run(Application.class, args);
     System.out.println(Arrays.toString(context.getBeanDefinitionNames()));
  }
}

In the output, you can see an array of the bean names used in the application. Even if we didn’t create our own beans, we will see a lot of internal beans created by Spring Boot to keep the application running.

@SpringBootApplication contains the @ComponentScan annotation, so our Spring Boot context will know about our custom @Component (@Configuration, @Service, @Repository and so on) classes.

Another way to access ApplicationContext is to use the @Autowired annotation. Just inject the context created in the SpringApplication.run(...) method into another component. This allows us to get the context anywhere in the application.

Let’s get all bean names from ApplicationContext inside the Runner class:

@Component
public class Runner implements CommandLineRunner {

    @Autowired
    ApplicationContext applicationContext;

    @Override
    public void run(String... args) throws Exception {
        Arrays.toString(applicationContext.getBeanDefinitionNames());
    }
}

Conclusion

In this topic, we learned about the ApplicationContext interface representing the core Spring concept: the IoC container. It inherits BeanFactory and has methods for managing beans in the container. There are many implementations of ApplicationContext, for example, AnnotationConfigApplicationContext for annotation-based configuration, and ClassPathXmlApplicationContext for XML configuration. In Spring Boot, the SpringApplication.run() method takes over creating a context based on found beans, which definitely makes our life easier!
